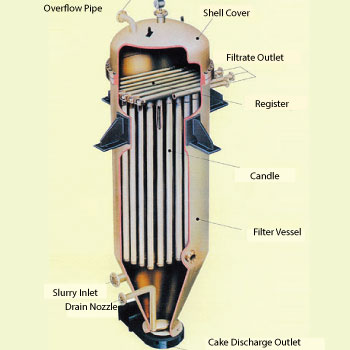

Structure of Fundabac Filter

Fundabac consists of three major parts:filter vessel, candles, (filter elements) and register pipes. The filter vessel made of stainless steel or carbon steel, with a rubber of titanium lining. The filter element are made of synthetic resins such as reinforced polypropylene resin (PPR), polyvinylidene fluoride resin (PVDF) or stainless steel, and the filter fabric is made of synthetic fiber such as polyester, polypropylene, polyphenylene sulfide (PPS), nylon or Telfon.

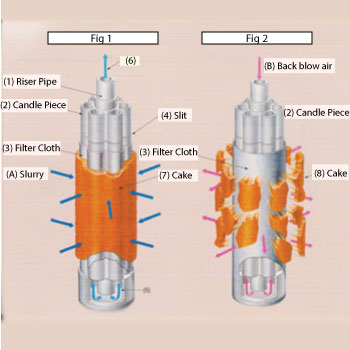

Principle of Filtration


Raw liquid is pressurized and fed into the filter vessel using a pump. The filtered liquid is collected from the filtered liquid outlet for each register pipe at the top of the filter vessel.

Cake discharge

Cake attached to candles (filter elements) is dried by air and collected in solid form from the bottom of the filter vessel using back blow. The cake can also be collected in slurry form using back washing.

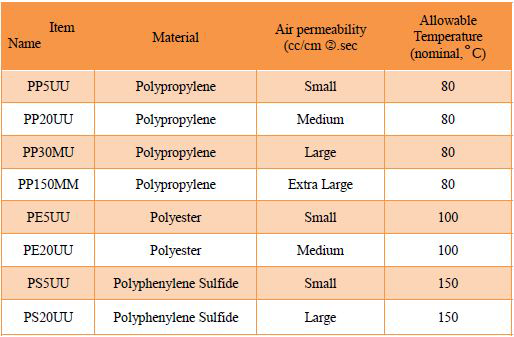

Specification for filter cloth

Note:Allowable temperatures are approximate values since they depends on liquid types.
